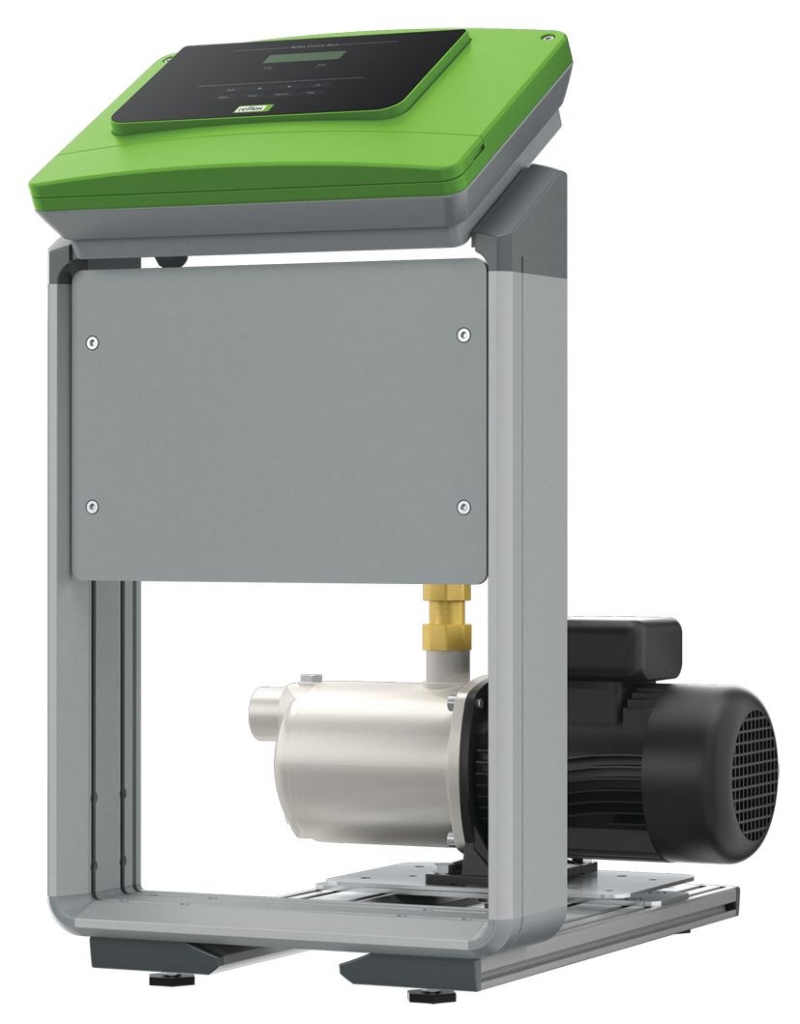

Reflex Fillcontrol Auto 2PS 25+

Function monitoring of the pressurisation in sealed heating and chilled water systems and controlled make-up of make-up water plus filling function for first filling and refilling. Particularly suitable for system filling and make-up with water and water mixtures from unpressurised storage and mixing tanks.

Type: Auto 5,5
Min. ambient temperature: 0 °C
Max. ambient temperature: 35 °C
Max. perm. operating temperature: 70 °C
Max. perm. operating pressure: 10 bar
Electric connection: 230V/50Hz
Max. pump rate: 4.2 m³/h
Max. electrical rated power: 0.75 kW
Min. supply rate: 360 l/h
Height: 683 mm
Width: 471 mm
Depth: 440 mm
Weight: 18.60 kg
